Substrates
Benchmark substrate potentials: different wells and symmetries
The cluster moves on a rigid substrate potential. It is defined either as a lattice of repeated potential wells or as a superposition of plane waves (which can also represent a quasicrystal).
For the plane-wave (sinusoidal) substrate, the number of waves and their relative phases control the symmetry; the amplitude is set by \(\epsilon\).
For lattice-based substrates, the repeated unit (the “well”) can be any smooth function — in practice it should vanish at the cell boundary to avoid discontinuities.
[1]:
import numpy as np
from numpy import sqrt
import matplotlib.pyplot as plt
from flake.substrate import (calc_matrices_bvect,
particle_en_gaussian,
particle_en_sin,
particle_en_tanh,
gaussian, get_ks,
substrate_from_params)
from flake.plot import (get_brillouin_zone_2d, plot_BZ2d,
plot_UC, plot_lattice_vectors)
Lattice substrate
A lattice substrate is defined by two primitive vectors, just like a cluster. calc_matrices_bvect returns both the direct-space matrix \(\mathbf{u}\) (columns are \(\mathbf{b}_1\), \(\mathbf{b}_2\)) and its inverse \(\mathbf{u}^{-1}\) (used for fractional coordinates).
Substrate symmetry
[2]:
# Substrate primitive vectors.
# Uncomment the geometry you want; only one should be active at a time.
# If sin potential, you should match the lattice with the wave vector
# Triangular lattice, spacing R=1
R = 1.0
b1 = np.array([R, 0.])
b2 = np.array([-R/2., R*sqrt(3.)/2.])
u, u_inv = calc_matrices_bvect(b1, b2)
sym = 'triangular'
# Square lattice, spacing R=1
# R = 1.0
# b1 = np.array([R, 0.])
# b2 = np.array([0., R])
# u, u_inv = calc_matrices_bvect(b1, b2)
# sym = 'square'
# Oblique example
# b1 = np.array([1., 0.])
# b2 = np.array([0., 2.])
# u, u_inv = calc_matrices_bvect(b1, b2)
# sym = 'oblique'
print('Lattice: %s, b1=%s, b2=%s' % (sym, b1, b2))
Lattice: triangular, b1=[1. 0.], b2=[-0.5 0.8660254]
Basis
The Bravais lattice can be decorated with a multi-site basis. For most substrates a single site at the origin is sufficient.
[3]:
# Substrate basis: list of (2,) positions within the unit cell.
basis = [np.array([0., 0.])]
# Decorated examples (uncomment to try):
# basis = [np.array([0., 0.]), np.array([0.5, sqrt(3)/6.])] # honeycomb
Well shape
This is the function repeated at each lattice site (gaussian / tanh), or the set of plane-wave vectors defining a sinusoidal landscape (sin).
The sinusoidal substrate energy is:
where the \(n\) wave vectors \(\mathbf{k}_l\) are generated by get_ks. The normalisation \(c_n\) is chosen so that the global minimum is \(-\epsilon\).
Note:
alpha_ninget_ksis in radians. For square symmetry usealpha_n = np.pi/4, not45..
[4]:
# Choose substrate type: 'gaussian', 'tanh', 'sin'
sub_type = 'sin'
if sub_type == 'gaussian':
# Gaussian well: smooth, localized, vanishes at r=b.
# Ref: Cao, Silva et al., Phys. Rev. X 12, 021059 (2022)
epsilon, sigma, a, b = 1., 0.1, 0.2, 0.45
en_inputs = [basis, a, b, sigma, epsilon, u, u_inv]
en_func = particle_en_gaussian
title = 'Gaussian well, %s lattice' % sym
elif sub_type == 'tanh':
# Tanh well: flat bottom with steep walls, width controlled by ww.
# Ref: Cao et al., Phys. Rev. E 103, 012606 (2021)
epsilon, ww, a, b = 1., 0.25, 0.1, 0.45
en_inputs = [basis, a, b, ww, epsilon, u, u_inv]
en_func = particle_en_tanh
title = 'Tanh well, %s lattice' % sym
elif sub_type == 'sin':
# Plane-wave (sinusoidal) substrate: sum of n plane waves.
# Ref: Vanossi, Manini, Tosatti, PNAS 109, 16429 (2012)
# get_ks(R, n, c_n, alpha_n) generates the n wave vectors:
# R -- lattice spacing (sets the length scale)
# n -- number of waves (controls symmetry)
# c_n -- normalisation constant so that E_min = -epsilon
# alpha_n -- global rotation of the wave-vector set [degrees]
n, c_n, alpha_n = 3, 4./3., 0. # triangular symmetry
# n, c_n, alpha_n = 2, 1., 0. # parallel lines (1D)
# n, c_n, alpha_n = 4, sqrt(2), np.pi/4. # square symmetry
# n, c_n, alpha_n = 5, 2., 0. # 5-fold quasicrystal
epsilon = 1.
ks = get_ks(R, n, c_n, alpha_n)
en_inputs = [basis, ks, epsilon]
en_func = particle_en_sin
title = 'Sinusoidal, n=%i-fold' % n
else:
raise ValueError('Unknown sub_type: %r' % sub_type)
Visualising the substrate

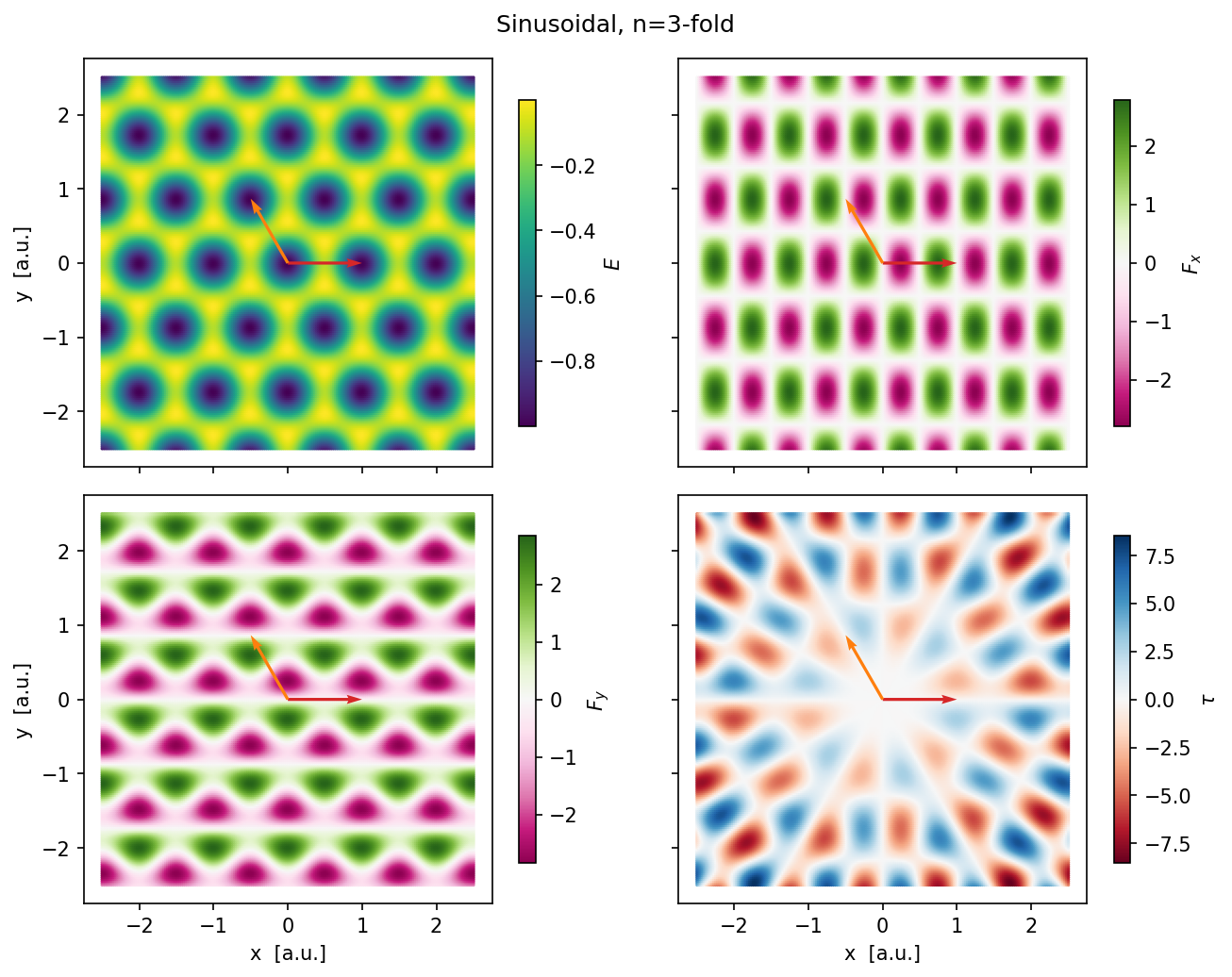

2D energy and force maps
We evaluate the substrate energy \(E\), force \(\mathbf{F} = -\nabla E\), and torque \(\tau = -\partial E / \partial \theta\) on a 2D grid. The torque is computed with respect to the origin; for an extended layer it is not physically meaningful on its own, but it is useful for debugging.
[5]:
side = 2.5
nx, ny = 200, 200
xx, yy = np.meshgrid(np.linspace(-side, side, nx),
np.linspace(-side, side, ny))
# Flatten to (N,2) -- substrate functions expect a list of positions.
p = np.stack([xx.ravel(), yy.ravel()], axis=1)
en, F, tau = en_func(p, np.array([0., 0.]), *en_inputs)
# 1D cross-section along x for profile plots.
x_line = np.linspace(0., side, 4*nx)
p_line = np.stack([x_line, np.zeros_like(x_line)], axis=1)
en_line, F_line, tau_line = en_func(p_line, np.array([0., 0.]), *en_inputs)
[ ]:
fig, axes = plt.subplots(2, 2, figsize=(9, 7), dpi=150,
sharex=True, sharey=True)
fig.suptitle(title)
(axE, axFx), (axFy, axTau) = axes
s0 = 0.5 # scatter marker size -- tiny to approximate a continuous map
S = u_inv.T if sub_type != 'sin' else np.array([b1, b2])
for ax, vals, label, cmap in [
(axE, en, r'$E$', 'viridis'),
(axFx, F[:,0], r'$F_x$', 'PiYG'),
(axFy, F[:,1], r'$F_y$', 'PiYG'),
(axTau, tau, r'$\tau$', 'RdBu'),
]:
sc = ax.scatter(p[:,0], p[:,1], c=vals, s=s0, cmap=cmap, rasterized=True)
plt.colorbar(sc, ax=ax, label=label, shrink=0.8)
plot_lattice_vectors(ax, S)
if sub_type != 'sin':
plot_BZ2d(ax, get_brillouin_zone_2d(S),
{'ls': '--', 'color': 'gray', 'lw': 0.8, 'fill': False})
ax.set_aspect('equal')
axFy.set_xlabel('x [a.u.]')
axTau.set_xlabel('x [a.u.]')
axE.set_ylabel('y [a.u.]')
axFy.set_ylabel('y [a.u.]')
plt.tight_layout()
plt.show()

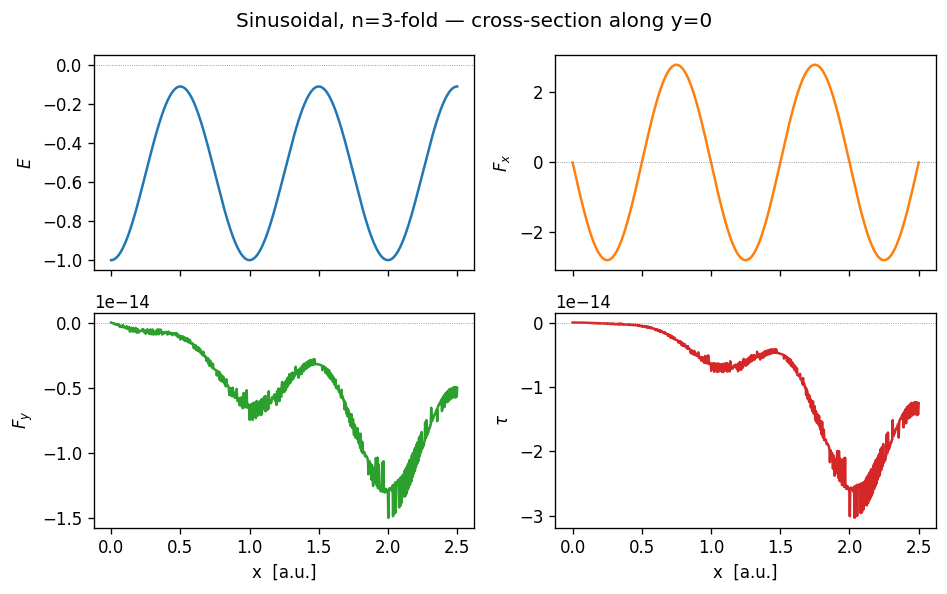

1D cross-section along \(x\)
The same quantities along the horizontal line \(y = 0\).
[7]:
fig, axes = plt.subplots(2, 2, figsize=(8, 5), dpi=120, sharex=True)
fig.suptitle(title + ' — cross-section along y=0')
(axE, axFx), (axFy, axTau) = axes
axE.plot(x_line, en_line, color='tab:blue')
axFx.plot(x_line, F_line[:,0], color='tab:orange')
axFy.plot(x_line, F_line[:,1], color='tab:green')
axTau.plot(x_line, tau_line, color='tab:red')
for ax, label in [(axE, r'$E$'), (axFx, r'$F_x$'),
(axFy, r'$F_y$'), (axTau, r'$\tau$')]:
ax.set_ylabel(label)
ax.axhline(0, color='gray', lw=0.5, ls=':')
axFy.set_xlabel('x [a.u.]')
axTau.set_xlabel('x [a.u.]')
plt.tight_layout()
plt.show()
Substrate from parameter dictionary
In practice, the substrate is loaded from a YAML file via substrate_from_params. It returns three objects:
pen_func: per-particle energy/force/torque (one value per site)en_func: total energy/force/torque summed over the whole clusteren_inputs: always an empty list — all parameters are captured in a closure
Call signature: en_func(pos, pos_cm) (no extra arguments).

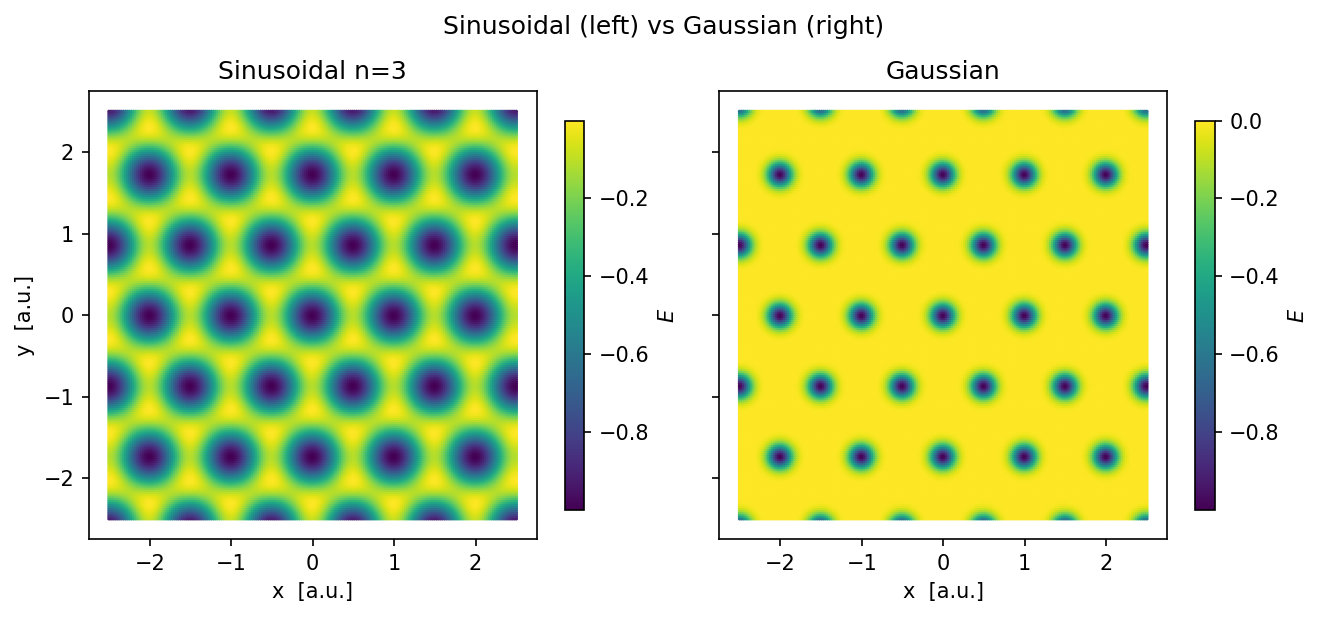

Here we build a Gaussian-well substrate from a dict and compare its landscape with the sinusoidal one above.
[8]:
params = {
'well_shape': 'gaussian',
'sub_basis': [[0., 0.]],
'b1': [1., 0.],
'b2': [1/2., sqrt(3.)/2.],
'epsilon': 1.,
'sigma': 0.1,
'a': 0.2,
'b': 0.45,
}
pen_func, _, en_inputs_g = substrate_from_params(params)
en_g, _, _ = pen_func(p, np.array([0., 0.]), *en_inputs_g)
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(9, 4), dpi=150,
sharex=True, sharey=True)
fig.suptitle('Sinusoidal (left) vs Gaussian (right) ')
sc1 = ax1.scatter(p[:,0], p[:,1], c=en, s=s0, cmap='viridis', rasterized=True)
sc2 = ax2.scatter(p[:,0], p[:,1], c=en_g, s=s0, cmap='viridis', rasterized=True)
plt.colorbar(sc1, ax=ax1, label=r'$E$', shrink=0.8)
plt.colorbar(sc2, ax=ax2, label=r'$E$', shrink=0.8)
for ax, t in [(ax1, 'Sinusoidal n=3'), (ax2, 'Gaussian')]:
ax.set_aspect('equal')
ax.set_title(t)
ax.set_xlabel('x [a.u.]')
ax1.set_ylabel('y [a.u.]')
plt.tight_layout()
plt.show()
