Cluster creation
A cluster is simply a collection of \(N\) 2D position vectors — the coordinates of the particles in the cluster reference frame (CM at origin, \(\theta = 0\)). Depending on your physical system, there are several ways to obtain these positions. This notebook walks through all of them.
[1]:
import numpy as np
from numpy import sqrt, pi, tan
import matplotlib.pyplot as plt
from flake.cluster import (make_cluster, rotate, add_basis,
save_cluster, load_cluster,
cluster_from_params,
params_from_poscar,
cluster_poly, get_poly)
from flake.plot import plt_cosmetic
Lattice and size
A cluster is a finite subset of a 2D Bravais lattice, cut to a given shape. The lattice is defined by two primitive vectors \(\mathbf{a}_1\) and \(\mathbf{a}_2\). N1 and N2 control the number of candidate lattice sites generated before the shape mask is applied — their exact meaning depends on the shape (see flake.cluster docstring for details).
[2]:
a1 = np.array([1., 0.])
a2 = np.array([-0.5, sqrt(3.)/2.]) # triangular lattice, spacing 1
N1, N2 = 12, 12
Single shape
make_cluster always returns an \((N, 2)\) float64 array with the centre of mass (CM) at the origin and no rotation applied (\(\theta = 0\) reference frame). Translation and rotation are applied explicitly afterwards — this keeps cluster creation and the initial conditions for dynamics cleanly separated:
[3]:
pos = make_cluster(a1, a2, N1, N2, shape='hexagon')
print('Hexagon: N=%d particles' % pos.shape[0])
tho = 15. # rotation angle [degrees]
X0, Y0 = 5., 2. # target CM position
pos_shifted = rotate(pos, tho) + np.array([X0, Y0])
fig, ax = plt.subplots(dpi=150)
ax.scatter(pos_shifted[:,0], pos_shifted[:,1], s=10, label='cluster')
ax.scatter(X0, Y0, marker='x', color='green', s=100, label='target CM')
ax.scatter(*np.mean(pos_shifted, axis=0), marker='+',
color='pink', s=100, label='actual CM')
xx = np.linspace(pos_shifted[:,0].min(), pos_shifted[:,0].max())
ax.plot(xx, Y0 + xx * tan(tho * pi/180.),
lw=1.5, ls=':', color='red', label='orientation (theta=%.0f deg)' % tho)
ax.legend(fontsize=8)
ax.set_title('Hexagonal cluster, N=%d' % pos.shape[0])
plt_cosmetic(ax)
plt.tight_layout()
plt.show()
Hexagon: N=397 particles

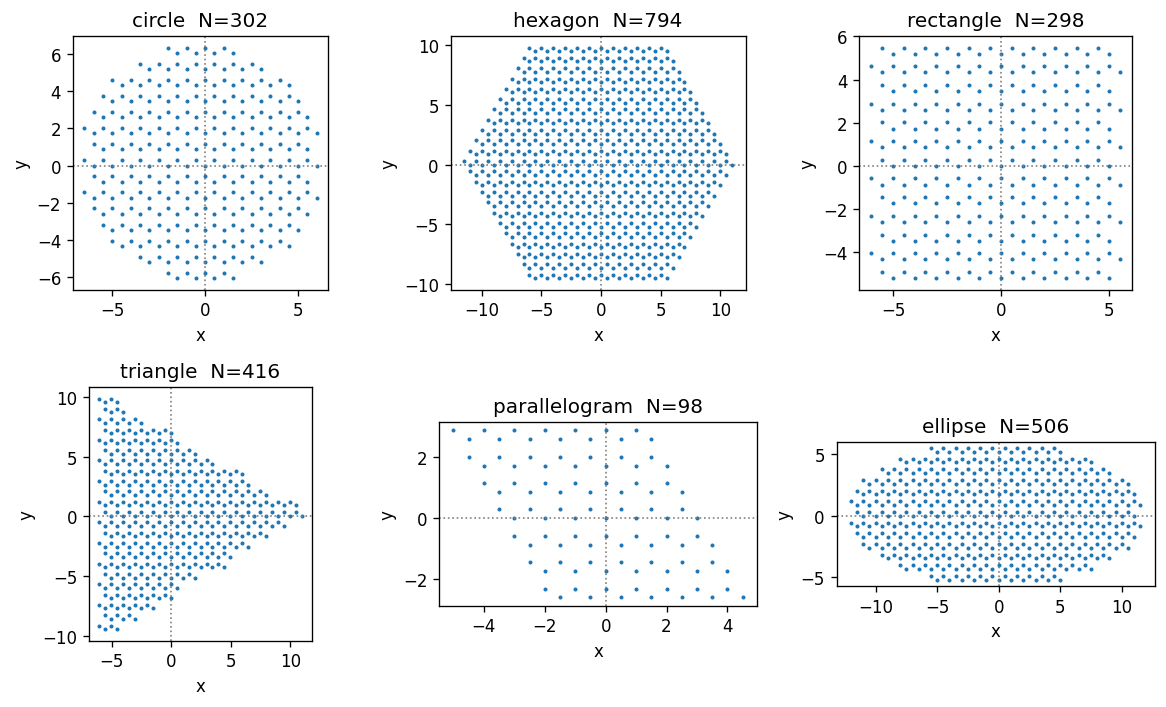

All shapes
All available shapes on the same triangular lattice, with a two-atom honeycomb basis added. Adding a 2-atom basis doubles the number of particles per lattice site.
Shape guide: - circle: isotropic; good default for finite-size scaling studies - hexagon: 6-fold symmetric; natural match for triangular lattice - rectangle: anisotropic contact; useful for directional friction studies - triangle: sharp edges; tests boundary effects - parallelogram: periodic-boundary compatible; exact tiling of the lattice (see Panizon Nanoscale 2023) - ellipse: semi-axes \(r_x = N_1 |\mathbf{a}_1|\), \(r_y = N_2 |\mathbf{a}_2|\)
[4]:
# Honeycomb basis: two atoms per unit cell.
# The second atom is displaced by (1/3)*a1 + (2/3)*a2 = [-1/6, 1/(2*sqrt(3))].
# The y-component 1/sqrt(3)/2 = 0.28867513...
cl_basis = [np.array([0., 0.]),
np.array([-0.5, 1./(2.*sqrt(3.))])] # = 0.28867513...
fig, axes = plt.subplots(2, 3, figsize=(10, 6), dpi=120)
axes = axes.ravel()
for ax, shape in zip(axes, ['circle', 'hexagon', 'rectangle',
'triangle', 'parallelogram', 'ellipse']):
# parallelogram requires sqrt(N1*N2) to be an odd integer
n1, n2 = (7, 7) if shape == 'parallelogram' else (N1, N2)
if shape == 'ellipse': n2 /= 2
try:
pos = make_cluster(a1, a2, n1, n2, shape=shape)
pos = add_basis(pos, cl_basis)
ax.scatter(pos[:,0], pos[:,1], s=2)
ax.set_title('%s N=%i' % (shape, pos.shape[0]))
except Exception as e:
ax.set_title('%s: %s' % (shape, e))
plt_cosmetic(ax)
plt.tight_layout()
plt.show()

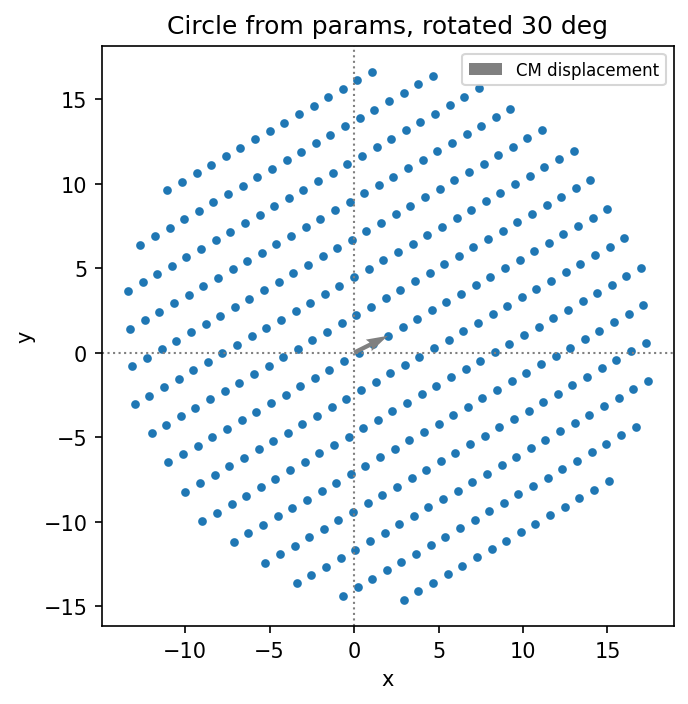

Cluster from parameter dictionary
cluster_from_params builds a cluster from a plain Python dict — the standard interface when loading a YAML input file (e.g. for the CLI). It always returns positions with CM at the origin and \(\theta = 0\); shift and rotation are applied explicitly afterwards.
[5]:
params = {
'a1': [1., 0.], 'a2': [0., 2.], # rectangular lattice
'cl_basis': [[0., 0.]],
'cluster_shape': 'circle',
'N1': 20, 'N2': 20,
}
pos = cluster_from_params(params)
print('Cluster %s, N=%i' % (params['cluster_shape'], pos.shape[0]))
# Shift and rotate explicitly after creation.
theta, pos_cm = 30., np.array([2., 1.])
pos = rotate(pos, theta) + pos_cm
fig, ax = plt.subplots(dpi=150)
ax.scatter(pos[:,0], pos[:,1], s=10)
ax.quiver(0, 0, *pos_cm, angles='xy', scale_units='xy', scale=1,
color='gray', label='CM displacement')
ax.set_title('Circle from params, rotated %.0f deg' % theta)
ax.legend(fontsize=8)
plt_cosmetic(ax)
plt.tight_layout()
plt.show()
Cluster circle, N=389

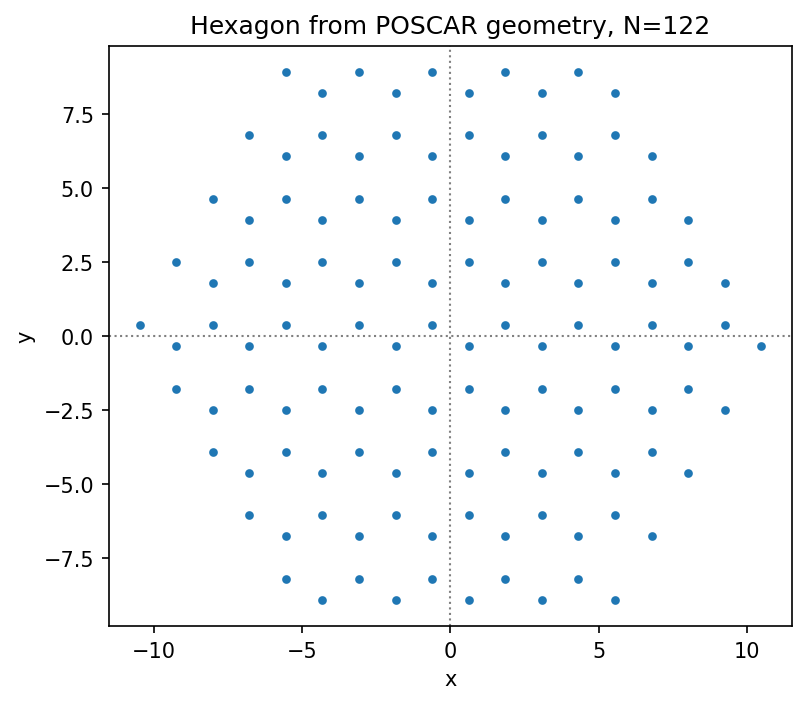

Load from POSCAR
To model real materials it is convenient to import geometry directly from ab-initio codes. params_from_poscar reads a VASP POSCAR file and returns a parameter dict (a1, a2, cl_basis) ready for cluster_from_params.
Requirements for the POSCAR: - 2D periodicity encoded in the first two lattice vectors a, b (the third vector c must be along \(z\)) - All \(z\)-coordinates of the basis are projected away; use cut_z to select a specific layer in a multi-layer slab
Requires: pip install ase
[6]:
# params_from_poscar returns (poscar_params, z_coords_of_ignored_atoms).
# poscar_params contains a1, a2, cl_basis extracted from the file.
# Requires ASE: pip install ase
poscar_params, pos_z_ignored = params_from_poscar('./data/C.poscar', cut_z=6)
for k, v in poscar_params.items():
if isinstance(v[0], list):
print('%15s:' % k)
for vv in v:
print(' '*16, vv)
else:
print('%15s: %s' % (k, v))
print('z coordinates of ignored atoms:', pos_z_ignored)
# Combine the loaded lattice geometry with the desired macroscopic shape.
params = {**poscar_params,
'cluster_shape': 'hexagon',
'N1': 5, 'N2': 5}
pos = cluster_from_params(params)
print('Cluster %s, N=%i' % (params['cluster_shape'], pos.shape[0]))
fig, ax = plt.subplots(dpi=150)
ax.scatter(pos[:,0], pos[:,1], s=10)
ax.set_title('Hexagon from POSCAR geometry, N=%d' % pos.shape[0])
plt_cosmetic(ax)
plt.tight_layout()
plt.show()
a1: [1.2338620706831436, -2.137111795955346]
a2: [1.2338620706831436, 2.137111795955346]
cl_basis:
[0.0, 0.0]
[1.2338620706831438, -0.7123705986517821]
z coordinates of ignored atoms: [6.5137785 6.5137785]
Cluster hexagon, N=122
Cluster from polygon shape
To match an experimental cluster shape or test unusual geometries, define the cluster boundary as an arbitrary polygon. The Shapely package handles the point-in-polygon test.
The polygon is defined by its vertices; any convex or concave shape works.
[7]:
from shapely.geometry import Polygon
from shapely.plotting import patch_from_polygon
[8]:
# Define the polygon boundary by its vertices.
# Uncomment the shape you want; only one should be active.
# --- Circle approximated as a 50-gon ---
# t = np.linspace(0, 1, 50, endpoint=False)
# poly_points = np.stack([np.cos(2*pi*t), np.sin(2*pi*t)], axis=1)
# --- Square ---
#poly_points = np.array([[-1.,-1.], [1.,-1.], [1.,1.], [-1.,1.]])
# --- L-shape ---
poly_points = np.array([[0.,0.], [3.,0.], [3.,1.],
[1.,1.], [1.,7.], [0.,7.]])
# Scale and centre.
poly_points = poly_points * 5.
poly_points -= np.mean(poly_points, axis=0)
poly = Polygon(poly_points)
fig, ax = plt.subplots(dpi=120)
patch = patch_from_polygon(poly, facecolor='tab:blue', alpha=0.3)
ax.add_patch(patch)
ax.scatter(poly_points[:,0], poly_points[:,1], c='k', marker='x', s=30)
ax.set_title('Polygon boundary (square, scaled)')
plt_cosmetic(ax)
plt.tight_layout()
plt.show()

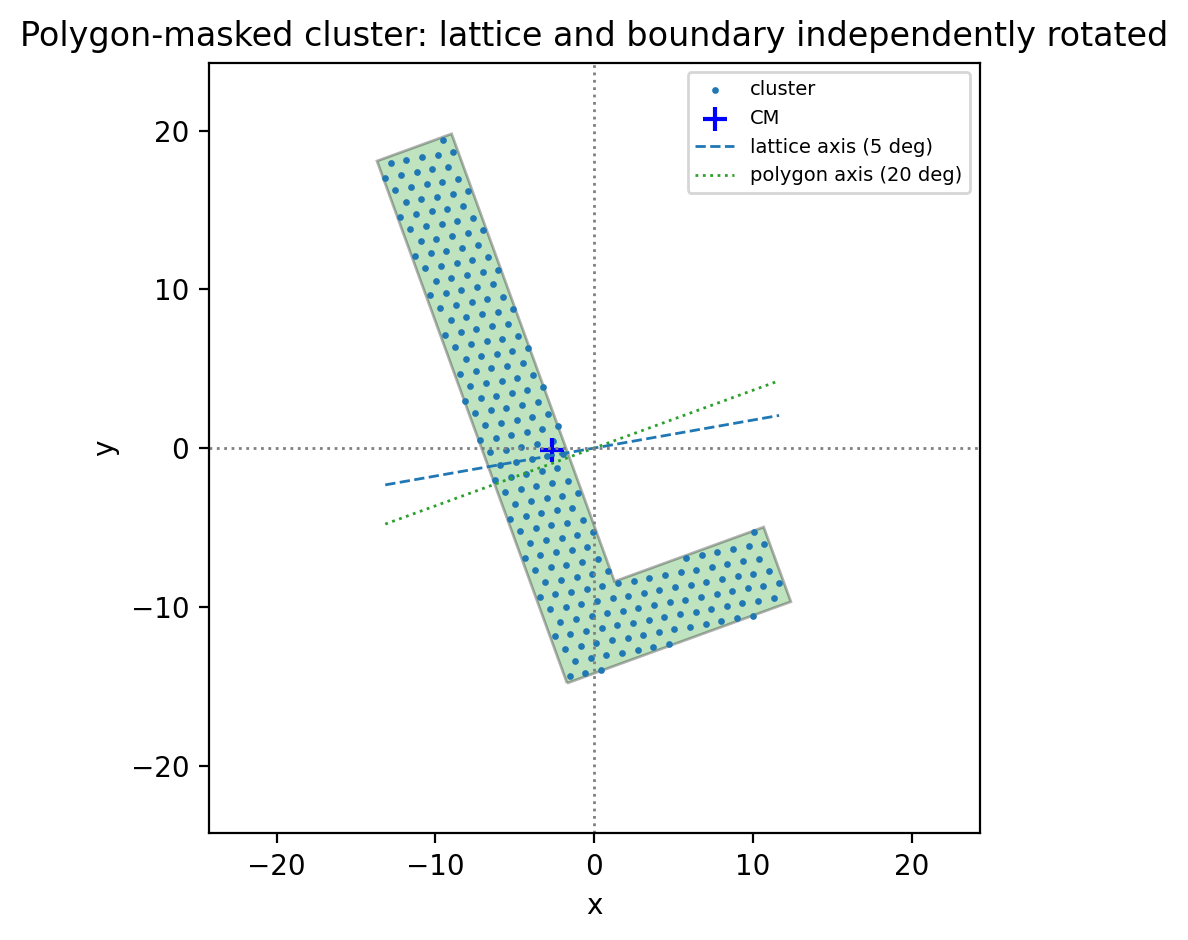

Mask lattice with polygon
cluster_poly generates a lattice inside the bounding box of the polygon, then keeps only the points inside it (direction=0) or outside it (direction=1, for cutting holes).
The key feature is that the polygon and the lattice can be rotated independently — this is how you create clusters with a deliberate mismatch between the crystal symmetry axis and the boundary shape.
[9]:
# Polygon rotation is independent of the lattice orientation.
tho = 20. # polygon rotation [degrees]
poly_rotated = get_poly(poly_points, tho=tho, shift=[0., 0.], cm=False, scale=1)
a1, a2 = [1., 0.], [-0.5, sqrt(3.)/2.]
thl = 10 # lattice orientation [degrees] -- independent of polygon
a1, a2 = rotate(a1, thl), rotate(a2, thl)
params = {
'a1': a1, 'a2': a2,
'cl_basis': [[0., 0.]],
'N1': 20, 'N2': 20,
'theta': 5, # flake rotation [degrees] -- independent of polygon and lattice ! not applied at construction !
}
# direction=0: keep lattice points inside polygon
pos = cluster_poly(poly_rotated, params, direction=0)
#pos -= np.mean(pos, axis=0) # re-centre CM
print('N=%i, CM=%s' % (pos.shape[0], np.mean(pos, axis=0)))
fig, ax = plt.subplots(dpi=200)
ax.add_patch(patch_from_polygon(poly_rotated,
facecolor='tab:green', alpha=0.3, zorder=0))
ax.scatter(pos[:,0], pos[:,1], s=2, label='cluster')
ax.scatter(*np.mean(pos, axis=0), marker='+', c='blue', s=80, label='CM')
xx = np.linspace(pos[:,0].min(), pos[:,0].max())
ax.plot(xx, xx*tan(thl*pi/180.),
ls='--', lw=1, color='tab:blue', label='lattice axis (%.0f deg)' % params['theta'])
ax.plot(xx, xx*tan(tho*pi/180.),
ls=':', lw=1, color='tab:green', label='polygon axis (%.0f deg)' % tho)
side = 1.1 * np.max(np.linalg.norm(pos, axis=1))
ax.set_xlim([-side, side])
ax.set_ylim([-side, side])
ax.legend(fontsize=7)
ax.set_title('Polygon-masked cluster: lattice and boundary independently rotated')
plt_cosmetic(ax)
plt.tight_layout()
plt.show()
N=258, CM=[-2.62851167 -0.126039 ]

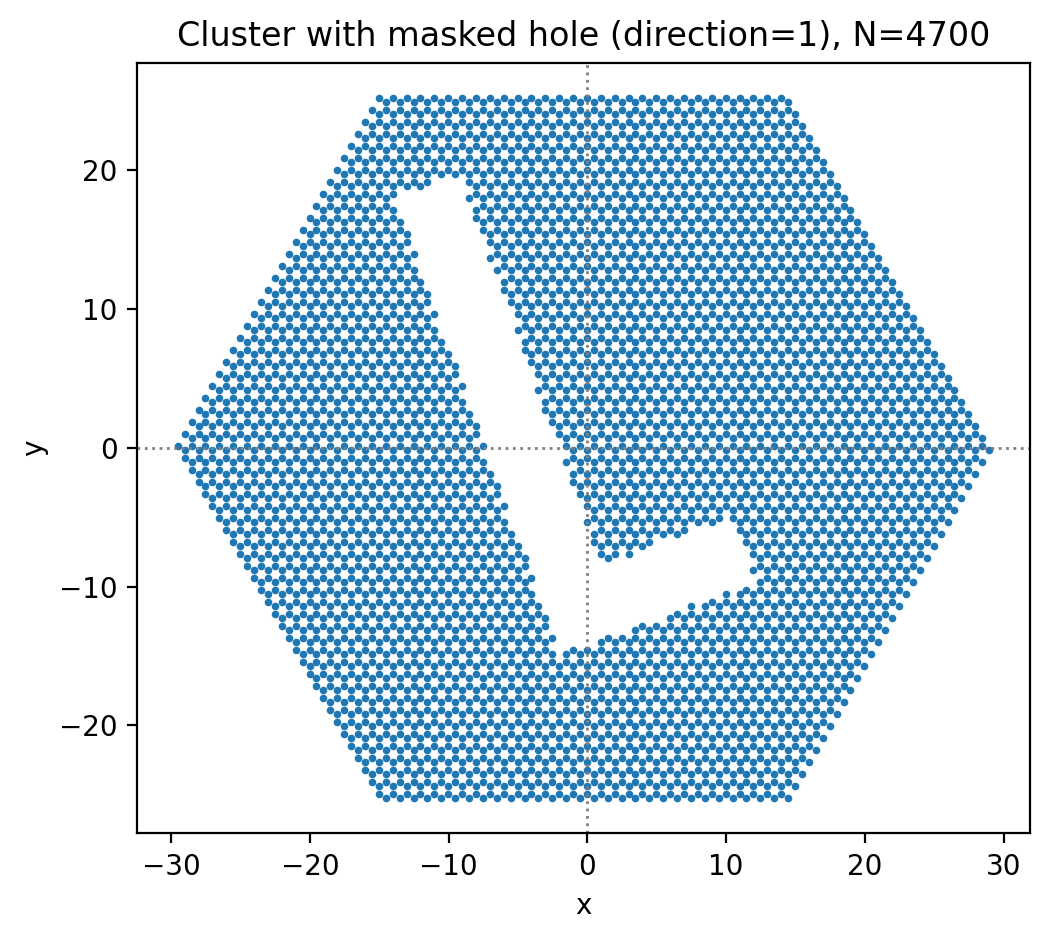

Polygon from params (with hole)
cluster_from_params with cluster_shape='polygon' and masked_shape lets you punch a polygon hole into a base shape. Set direction=1 to remove points inside the polygon rather than keeping them.
[10]:
# Punch the square polygon as a hole into a hexagonal cluster.
params_hole = {
'a1': [1., 0.], 'a2': [-0.5, sqrt(3.)/2.],
'cl_basis': [[0., 0.], [-0.5, 1./(2.*sqrt(3.))]], # honeycomb basis
'cl_poly': np.array(poly_rotated.exterior.coords.xy).T,
'cluster_shape': 'polygon',
'masked_shape': 'hexagon', # base shape to punch the hole into
'direction': 1, # 1 = remove points inside polygon
'N1': 30, 'N2': 30,
'theta': 0, # flake rotation [degrees]
}
pos = cluster_from_params(params_hole)
pos -= np.mean(pos, axis=0)
print('N=%i' % pos.shape[0])
fig, ax = plt.subplots(dpi=200)
ax.scatter(pos[:,0], pos[:,1], s=3)
ax.set_title('Cluster with masked hole (direction=1), N=%d' % pos.shape[0])
plt_cosmetic(ax)
plt.tight_layout()
plt.show()
N=4700
